8×1 Character LCD Module SDCB0801

COB Character LCD

8×1 Character LCD Module SDCB0801

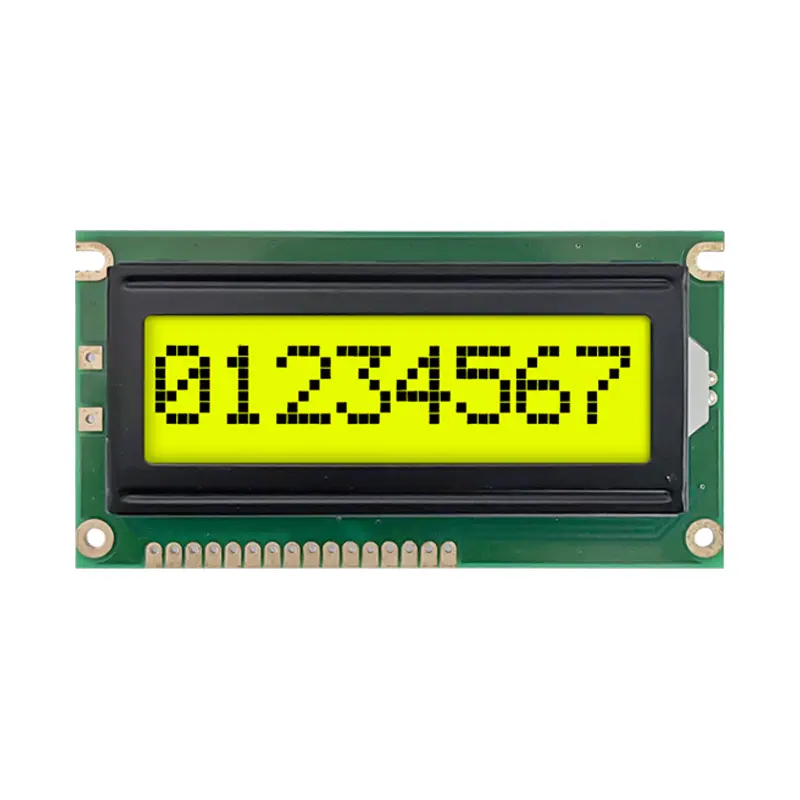

SINDA SDCB0801 is a versatile 8x1 character LCD display engineered for a wide range of applications. This transflective LCD module offers a visually stunning yellow-green display with excellent visibility, even in bright environments.


With a compact 60.00 x 33.00 x 10.70 mm footprint, the SDCB0801 boasts a 44.00 x 13.00 mm viewing area and 4.43 x 7.93 mm character size for optimal readability. Powered by the ST7066U controller, this FSTN/STN display operates at 5.0V and supports 4-bit and 8-bit parallel interfaces for seamless integration.


Designed to withstand -20°C to 70°C operating and -30°C to 80°C storage temperatures, the RoHS-compliant SDCB0801 is suitable for industrial control, medical, POS, consumer electronics, and more.

    How Can We Collaborate With ODM/OEM?

    Drawing Design and confirm (2-3 days)
    The 1V1 LCD module design solution balancing between form, function and features presented by our professional designers and engineers.

    Sample Development (12-15 days)
    Qurteam of experienced engineers takes care of the preparation process for production.

    Sample Confirmed
    Sample confirmed and tests make sure product compliance with client specifications.

    Mass Production (25-35 days)
    Effective and efficient execution of the design by our skilled workers with advanced facilities,supervised by the professional engineers and sales.

    Shipping
    The final product will be packed and delivered according to client specifications, ensuring total peace of mind.

    After-Sales Service (Life-time support)
    Any problems happening after your receiving the goods,we hope you communicate with our team anytime.

    Users Usage Follow-up
    There is a feedback chart you could fill to let us know your comments of us,no matter the service or products.
    NO Display Format Model No. Outline Dimension(mm) Viewing Area(mm) Active Area(mm) IC Interface

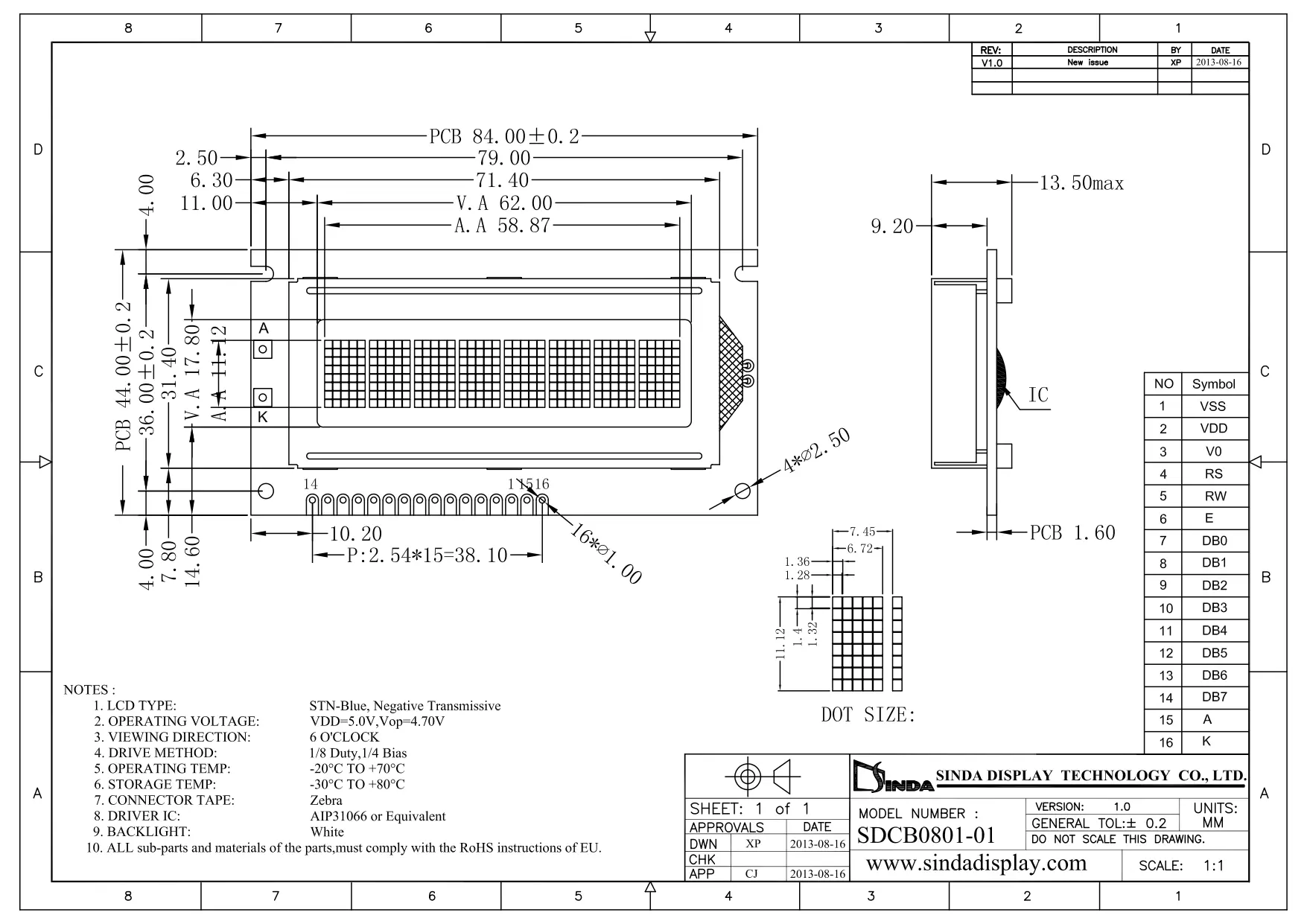

    1  8 × 1 SDCB0801-01 84.00 × 44.00 × 13.50 62.00 × 17.80 58.87 × 11.12 AIP31066 or Eqv.  Parallel

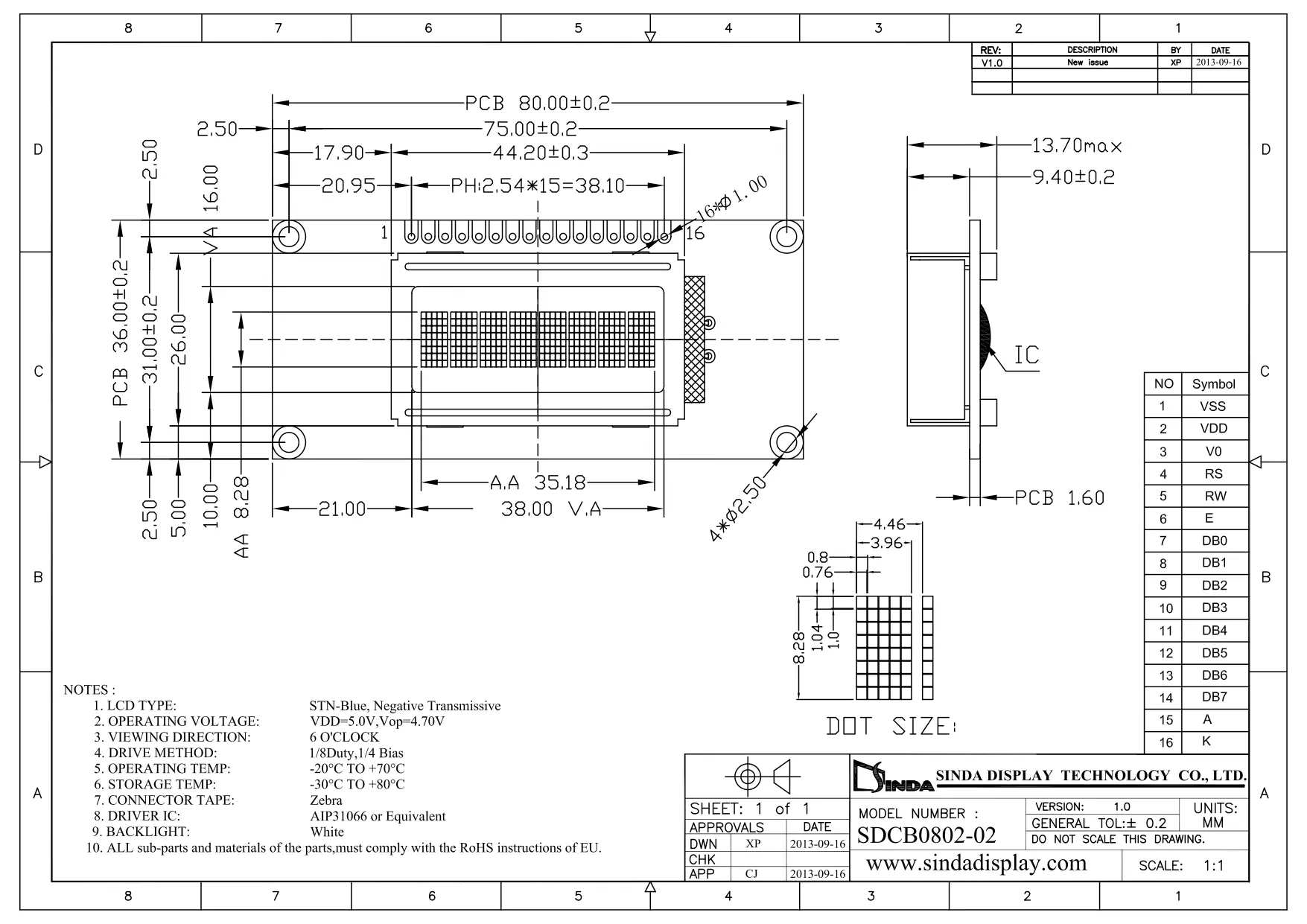

    2 SDCB0801-02 80.00 × 36.00 × 13.70 38.00 × 16.00 35.18 × 8.28 AIP31066 or Eqv.  Parallel

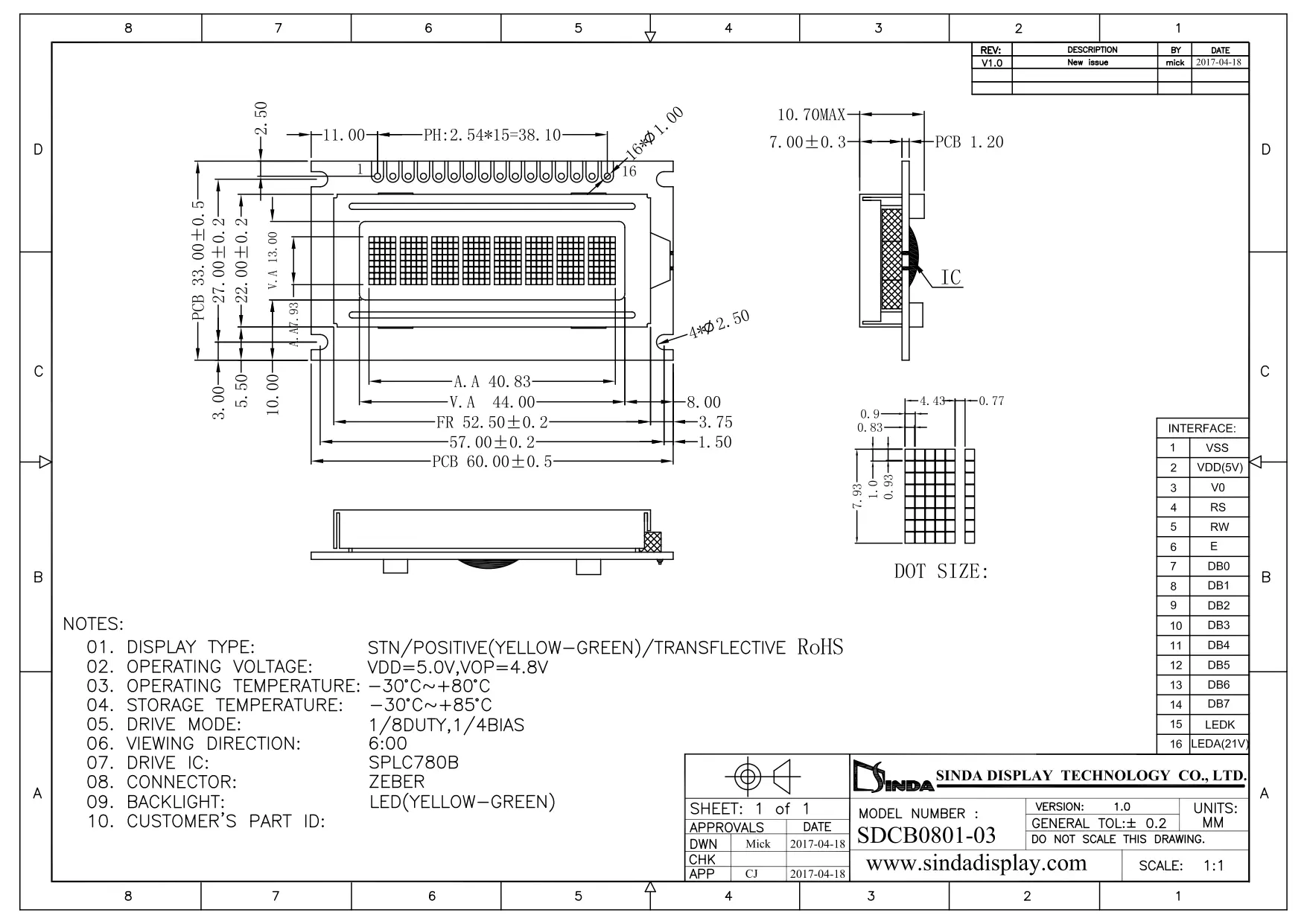

    3 SDCB0801-03 60.00 × 33.00 × 11.00 44.00 × 13.00 40.80 × 7.93 AIP31066 or Eqv.  Parallel

    0801-01

    Manufacturer SINDA
    Part Number SDCB0801-01
    Display Format 8x1  Character
    Interface 6800 4-bit /  8-bit Parallel
    IC or Equivalent ST7066U  AIP31066  HD44780
    Connection Pin Header
    Outline Dimension 84.00(W)x44.00(H)x13.50(T)mm
    Viewing Area 62.00x17.80mm
    Active Area 58.87x11.12mm
    Character Size 6.72x11.12mm
    IC Package COB
    Display Type FSTN /STN. Gray/Yellow-Green/Bule
    Viewing Direction 6:00/12:00
    Power Supply(Typ) 5.0V
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
    slide1

    0801-02

    Manufacturer SINDA
    Part Number SDCB0801-02
    Display Format 8x1  Character
    Interface 6800 4-bit / 8-bit Parallel
    IC or Equivalent ST7066U  AIP31066  HD44780
    Connection Pin Header
    Outline Dimension 80.00(W)x36.00(H)x13.70(T)mm
    Viewing Area 38.00x16.00mm
    Active Area 35.18x8.28mm
    Character Size 3.96x8.28mm
    IC Package COB
    Display Type FSTN /STN. Gray/Yellow-Green/Blue
    Viewing Direction 6:00/12:00
    Power Supply(Typ) 5.0V
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
    slide1

    0801-03

    Manufacturer SINDA
    Part Number SDCB0801-03
    Display Format 8x1  Character
    Interface 6800 4-bit / 8-bit Parallel
    IC or Equivalent ST7066U  AIP31066  HD44780
    Connection Pin Header
    Outline Dimension 60.00(W)x33.00(H)x10.70(T)mm
    Viewing Area 44.00x13.00mm
    Active Area 40.83x7.93mm
    Character Size 4.43x7.93mm
    IC Package COB
    Display Type FSTN /STN. Gray/Yellow-Green/Blue
    Viewing Direction 6:00/12:00
    Power Supply(Typ) 5.0V
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
    slide1
